What is a Diesel Engine Cooling System?

Diesel engines are known for their power, durability and efficiency, but they generate a significant amount of heat during operation. Without a proper cooling system, a diesel engine can overheat, leading to severe damage and costly repairs.

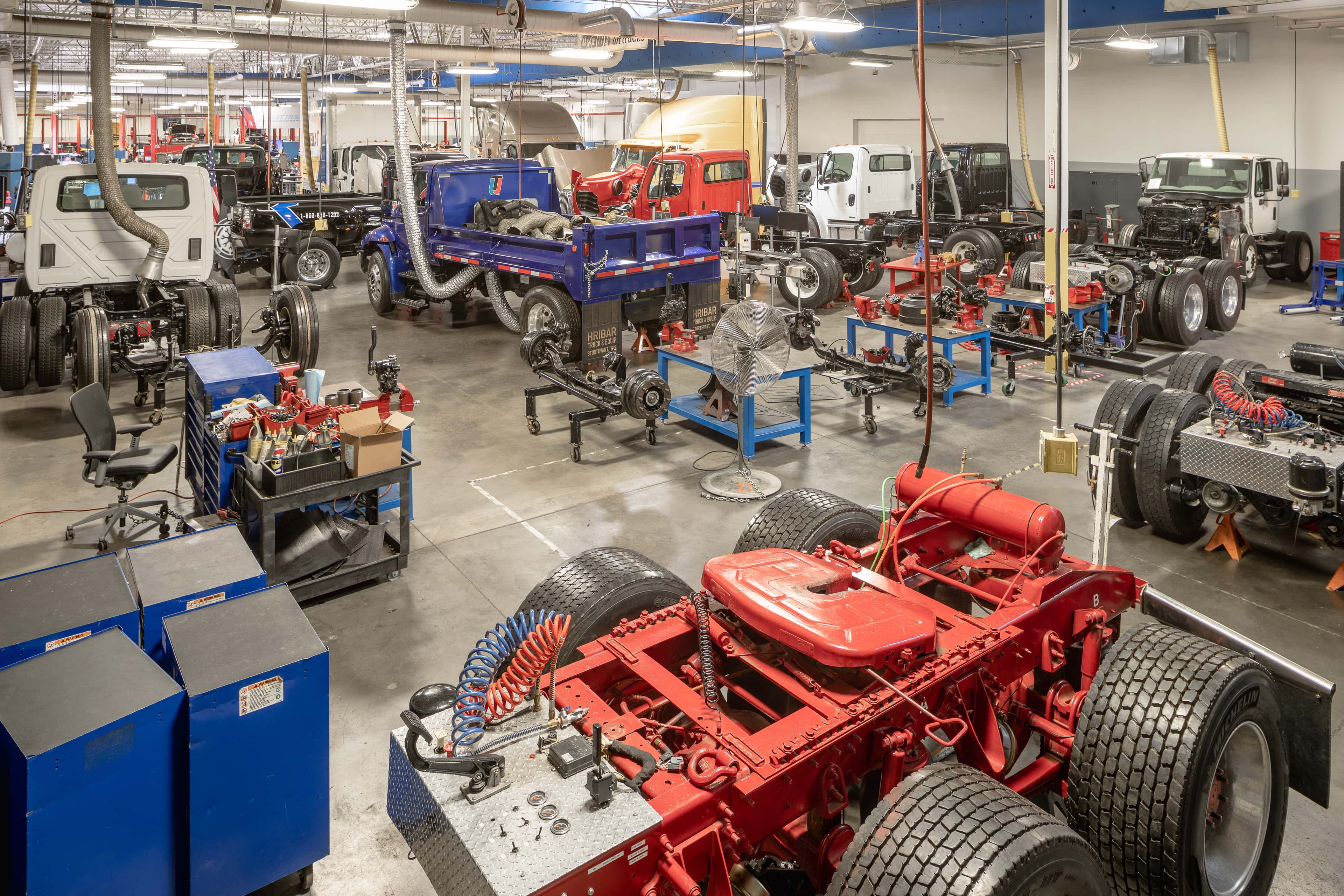

The diesel technician training program at Universal Technical Institute (UTI) offers hands-on training in diesel technology, preparing students to diagnose, maintain and repair diesel systems—including cooling systems—in a variety of heavy-duty vehicles and equipment.^1,18

Keep reading to explore how a diesel engine cooling system works, the key components that make it function, common problems you might encounter and essential maintenance tips. Whether you're a diesel mechanic in training or a vehicle owner, understanding the importance of this system can help you keep engines running smoothly.

Understanding the Cooling System in a Diesel Engine

A diesel engine cooling system is designed to regulate and maintain the engine’s operating temperature by dissipating excess heat. Diesel engines typically produce more heat than gasoline engines due to their higher compression ratios and combustion temperatures. However, because diesel engines are generally more thermally efficient, they convert more of the fuel’s energy into mechanical work. As a result, they don’t always produce more waste heat than gasoline engines—it depends on the engine design and operating conditions.

To prevent overheating, the cooling system in a diesel engine continuously circulates coolant through the engine and radiator, transferring heat away from critical components. This circulation is managed by key components like the water pump, which drives the flow of coolant, and the thermostat, which regulates when coolant flows to the radiator based on engine temperature. These elements work together to ensure the engine stays within its optimal temperature range for performance and longevity.

Key Components of a Diesel Engine Cooling System

A diesel cooling system consists of several interconnected components working together to regulate temperature and prevent overheating.

Radiator

The radiator is a heat exchanger that cools the heated coolant before it is recirculated into the engine. It is typically located at the front of the vehicle, where ambient air flows through the grille and across the radiator fins, allowing heat from the coolant to transfer to the surrounding air. This process is essential in maintaining the coolant at a temperature that allows the engine to operate efficiently.

Most systems also incorporate a reservoir (or expansion) tank, which holds excess coolant that expands as it heats up. This tank helps maintain proper coolant levels, reduces pressure in the system and allows for coolant to be drawn back into the radiator as the engine cools down.

Coolant

Coolant (antifreeze) is a liquid mixture that absorbs and transfers heat away from the engine. It typically consists of distilled water mixed with either ethylene glycol or propylene glycol, along with chemical additives that help prevent freezing, boiling and corrosion inside the system.

In addition to managing temperature, coolant also helps lubricate components like the water pump, reducing wear and promoting longer system life. Its role is crucial in maintaining stable engine temperatures, especially under high-performance or heavy-load conditions.

Water pump

The water pump is responsible for circulating coolant throughout the engine and radiator. It ensures a steady flow of coolant to absorb and release heat efficiently.

Thermostat

The thermostat is a temperature-sensitive valve that regulates coolant flow based on engine temperature. When the engine is cold, the thermostat remains closed to help the engine warm up quickly. Once the engine reaches its normal operating range, typically between 180 and 195 degrees Fahrenheit, the thermostat opens to allow coolant to circulate through the radiator, helping to manage and stabilize the engine temperature.

A faulty thermostat—one that sticks closed or opens too late—can disrupt this process, leading to engine overheating as the coolant is prevented from flowing and releasing excess heat. This makes the thermostat a critical component for both performance and engine protection.

Cooling fans

Cooling fans assist in heat dissipation by pulling or pushing air through the radiator to help lower the coolant temperature. These fans can be mechanically driven (clutch-driven) or electrically controlled (variable speed), depending on the vehicle and engine design.

Clutch-driven fans are typically engaged by engine temperature or speed, while variable-speed electric fans can adjust airflow based on real-time cooling needs. These fans activate when the airflow from driving alone isn’t sufficient, such as during idling or low-speed operation, to ensure the engine stays within a safe temperature range.

Hoses

Hoses transport coolant between the radiator, engine, water pump and heater core. They must be durable and resistant to high temperatures and pressure to ensure a reliable flow of coolant.

Read more: Diesel Terminology Explained

How Does a Diesel Engine Cooling System Work?

The diesel engine cooling system follows a continuous cycle to manage heat:

• Coolant absorbs heat – The water pump pushes the coolant through the engine, where it absorbs heat from components like the cylinder head and engine block.
• Heat transfer to the radiator – Heated coolant flows to the radiator, where it releases heat as air passes through.
• Cooling fans assist – When needed, cooling fans help pull air through the radiator for additional heat dissipation.
• Coolant recirculation – The thermostat regulates the coolant flow to maintain an optimal engine temperature.
• The cycle repeats – Once the coolant is cooled down, it flows back into the engine to repeat the process.

This cycle ensures that the engine maintains a safe operating temperature for efficiency, performance and longevity.

Common Cooling System Problems and Solutions

Even with proper design, cooling systems can experience issues that affect engine performance. Here are some common problems and how to fix them:

Overheating

Overheating is one of the most common issues in diesel engine cooling systems. It often occurs due to low coolant levels, a clogged radiator or a malfunctioning thermostat. However, other causes can include a failing water pump—which can restrict or stop coolant flow—and in engines equipped with liners, piston and liner damage can also contribute to increased heat generation or coolant contamination.

When an engine overheats, it can lead to severe internal damage, including warped cylinder heads, blown gaskets, and potential scoring or cracking of internal components. The best way to prevent overheating is to check and refill coolant levels regularly, ensure the radiator is clean and free of debris, test the thermostat for proper function, and inspect the water pump and internal components during routine maintenance.

Leaks and corrosion

Leaks and corrosion can compromise the entire cooling system, leading to inadequate coolant circulation and overheating. These issues are often caused by worn-out hoses, loose clamps or rust within the radiator. Corrosion can also occur when the wrong type of coolant is used or when the coolant isn’t replaced regularly.

In addition to inspecting hoses and clamps, it's important to check for leaks around the radiator and at the water pump, as these are common failure points in the system. Early detection can help prevent coolant loss and damage to engine components. To prevent leaks and corrosion, inspect hoses for cracks, replace any corroded parts and always use a high-quality coolant with anti-corrosion properties. Regular coolant flushes also help remove rust and contaminants that can lead to system failure.

Defective cooling fans

Cooling fans play a critical role in maintaining proper airflow through the radiator, especially when the vehicle is idling or operating at low speeds. If a cooling fan malfunctions, the engine may overheat even if the rest of the cooling system is functioning correctly. Common causes of fan failure include blown fuses, faulty wiring or a malfunctioning electric motor. To diagnose the issue, check the fan’s fuse and relays, ensure wiring connections are intact and replace the fan if necessary.

Water pump and thermostat issues

The water pump and thermostat are essential for maintaining proper coolant flow. If the water pump fails due to worn bearings or a damaged impeller, coolant circulation will be disrupted, leading to overheating. A faulty thermostat can also cause problems by getting stuck in the closed position, preventing coolant from flowing to the radiator. To avoid these issues, it’s important to replace aging water pumps before they fail and regularly test the thermostat’s functionality.

Diesel Cooling System Maintenance Tips for Diesel Engines

Regular maintenance is essential for keeping the cooling system functioning properly. Here are some best practices:

Regular coolant checks and flush schedules

Regular coolant checks are essential to ensure the cooling system functions correctly. Over time, coolant can break down and lose its ability to regulate temperature effectively. Additionally, contaminants can build up in the system, leading to blockages.

It’s recommended to check coolant levels frequently and top off with the correct coolant mixture—typically a 50/50 blend of distilled water and ethylene or propylene glycol. When adding coolant, make sure to follow proper procedures, such as allowing the engine to cool before opening the reservoir and ensuring no air is trapped in the system.

Following the manufacturer’s coolant flush schedule is also crucial, as periodic flushes remove old fluid and impurities that can cause corrosion or reduced cooling performance. In addition, adding supplemental coolant additives (SCAs) may be necessary for some diesel engines—especially those with wet liners—to help control cavitation, corrosion and scale buildup. SCAs should be monitored and maintained at proper levels based on OEM recommendations.

Inspecting hoses and radiator for wear

Hoses and the radiator are critical components of the cooling system, and any wear or damage can lead to serious issues. Over time, hoses can become brittle, crack, or develop leaks due to the high heat and pressure they endure. The radiator can also accumulate debris, corrosion or small leaks that reduce its efficiency. Regularly inspecting these components for signs of wear and replacing damaged parts before they fail can prevent major cooling system failures.

Ensuring fans and thermostats function properly

The cooling fans and thermostat regulate airflow and coolant circulation, making them vital to the system’s efficiency. A failing fan may not provide sufficient airflow to the radiator, leading to overheating, while a faulty thermostat can cause coolant to become trapped in the engine. Testing the thermostat and ensuring that the fans turn on when needed can help identify potential issues early. Replacing malfunctioning components before they cause further damage is always a smart preventative measure.

Using the right type of coolant

Not all coolants are the same, and using the wrong type can lead to poor cooling performance, corrosion and even engine damage. Diesel engines require specific coolant formulations that provide adequate protection against freezing, boiling and rust formation.

The most common types of coolant include ethylene glycol-based and propylene glycol-based formulas. Ethylene glycol is widely used due to its superior heat transfer capabilities but is more toxic, whereas propylene glycol is a safer, more environmentally friendly alternative often used in applications where toxicity is a concern.

In addition to selecting the right base coolant, many diesel engines—particularly those with wet cylinder liners—require the use of SCAs. SCAs help protect against cavitation erosion, scale buildup and internal corrosion, all of which can significantly reduce engine life. SCAs must be monitored and maintained at proper concentrations, either by using pre-charged coolant formulations or adding them separately according to manufacturer specifications.

Always refer to the engine or vehicle manufacturer’s guidelines when selecting coolant, and avoid mixing different coolant types, as incompatible formulas can cause gelling, sludge formation or reduced protective properties.
